PORTABLE AUTOCLAVES

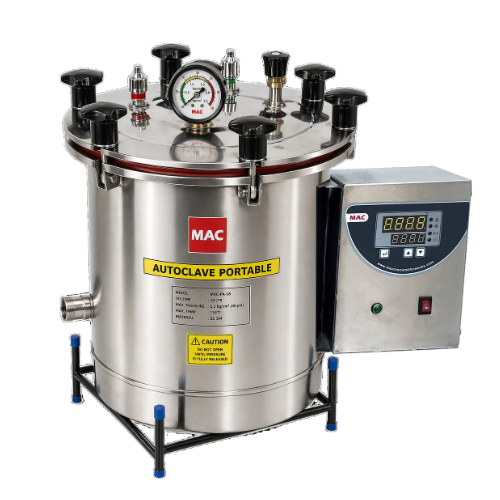

AUTOCLAVE PORTABLE “MAC” MSW-106(SAD)
- Working chamber has seamless die pressed body.
- The total sterilization process do not take more than 45 minutes.
- Each autoclave cycle consumes electricity less than 1 Unit per Cycle.
- All wetted parts like chamber, Lid are made of Stainless Steel (SS-304 grade).
- All internal joints are argon welded.
- The lid closing is simple press & turn system.
- The lid of the autoclave is fitted with Pressure Gauge, Manual Exhaust Valve, and Vacuum Breaker Cum Purge Valve.
- Pressure gauge has PSI and kPa readouts.
- Industrial grade energy efficient heaters reduce power bills drastically.
- Supplied with 1 No. heater cover stand.
- Drain valve to discard the water.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
| MODEL | #PAS-20(WN-SAD) | #PAS-27(WN-SAD) |
|---|---|---|
| Inner Dimensions (Dia x Height) | Ø300 x 300mm | Ø300 x 375mm |
| Gasket (Jointless) | Neoprene | Neoprene |
| Capacity | 20 ltrs | 27 ltrs |
| Heater Load | 2.0 KW | 2.0 KW |
| Chamber Walled | Single | Single |
| Temp. Controller & Display | Semi automatic digital temperature Indicator-cum-Controller with LED display for set value and process value. | Semi automatic digital temperature Indicator-cum-Controller with LED display for set value and process value. |
| Auto Time Function | In-built Automatic Digital Minute Timer starts automatically on achieving the set/desired value of temperature. When the set time period is over heaters switched off automatically with buzzer indicating cycle is over. | In-built Automatic Digital Minute Timer starts automatically on achieving the set/desired value of temperature. When the set time period is over heaters switched off automatically with buzzer indicating cycle is over. |
| Security Alarm | End of cycle buzzer & open sensor alarm. | End of cycle buzzer & open sensor alarm. |
| Resolution | 0.10C. | 0.10C. |
| Exhaust of Pressure | Manually through a exhaust valve | |
| Pressure Gauge | 0-2.1 kgf/cm2 (30 psi) | |
| Sterilizing Pressure | 0-2.1 kgf/cm2 (15 psi) at 121°C | |
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |
| MOC (Top Lid) | Stainless Steel (SS-304) | |
| Power Supply | 220/230V AC, 50/60Hz | |
AUTOCLAVE PORTABLE “MAC” MSW-106
- Working chamber has seamless die pressed body.
- The total sterilization process do not take more than 45 minutes.
- Each autoclave cycle consumes electricity less than 1 Unit per Cycle.
- All wetted parts like chamber, Lid are made of Stainless Steel (SS-304 grade).
- All internal joints are argon welded.
- The lid closing is simple press & turn system.
- The lid of the autoclave is fitted with Pressure Gauge, Manual Exhaust Valve, and Vacuum Breaker Cum Purge Valve.
- Pressure gauge has PSI and kPa readouts.
- Industrial grade energy efficient heaters reduce power bills drastically.
- Supplied with 1 No. heater cover stand.
- Drain valve to discard the water.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
| MODEL | #PAS-20(WN) | #PAS-27(WN) |
|---|---|---|
| Inner Dimensions (Dia x Height) | Ø300 x 300mm | Ø300 x 375mm |
| Gasket (Jointless) | Neoprene | Neoprene |
| Capacity | 20 ltrs | 27 ltrs |
| Heater Load | 2.0 KW | 2.0 KW |
| Chamber Walled | Single | Single |
| Exhaust of Pressure | Manually through a exhaust valve | |
| Pressure Gauge | 0-2.1 kgf/cm2 (30 psi) | |
| Sterilizing Pressure | 0-2.1 kgf/cm2 (15 psi) at 121°C | |
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | |
| MOC (Top Lid) | Stainless Steel (SS-304) | |
| Power Supply | 220/230V AC, 50/60Hz | |
