HORIZONTAL AUTOCLAVES

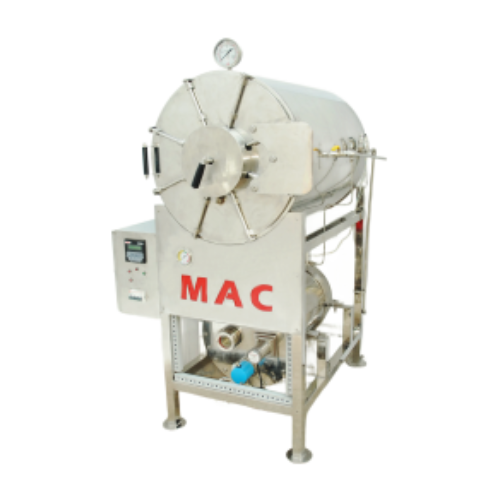

HORIZONTAL CYLINDRICAL AUTOCLAVE (DOUBLE WALLED) SEMI AUTOMATIC DIGITAL “MAC” MSW-103 (SAD)
- “MAC” Horizontal Double Walled Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- An ideal tool for Laboratories, hospitals, nursing homes, R & D labs etc.
- Double walled unit horizontally mounted on a sturdy, heavy M.S. duly painted.
- Both inner chamber and outer wall made of S.S.
- Pressure is adjustable from 10-20 psi.
- Fitted with pressure gauge, safety valve and steam release valve.
- Available with separate boiler.
- For units fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided.
- Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.
- Automatic Low Water Level Cut-Off Device fitted for general safety of the element.
- Fitted with Automatic Pressure Control Switch.
- Fitted with dial thermometer to indicate the inner chamber temperature.
- Lid is made of thick machined stainless steel plate.
- Supplied without jacket (Double walled chamber with separate boiler).
- Industrial grade energy efficient heaters reduce power bills drastically.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
| MODEL | #HCA-88(SAD) | #HCA-100(SAD) | #HCA-135(SAD) | #HCA-165(SAD) | #HCA-200(SAD) | #HCA-250(SAD) | #HCA-300(SAD) |
|---|---|---|---|---|---|---|---|
| Capacity | 88 ltrs | 100 ltrs | 135 ltrs | 165 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Heater Load | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 12.0 KW | 12.0 KW |
| Controller | Semi Automatic Digital temperature Indicator-Cum-Controller | ||||||
| Timer (Auto Time Control) | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically. | ||||||
| Display | A separate temperature indicator is provided. | ||||||
| Exhaust of Pressure | Automatic through a manual exhaust valve | ||||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121ºC | ||||||
| Operating Pressure | From 15 Psi to 20 psi | ||||||
| Pressure Gauge | 0-2.1 kgf /cm² (30 psi) | ||||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | ||||||
| MOC (Boiler) | Stainless Steel (SS-304) | ||||||
| MOC (External Wall) | Stainless Steel (SS-304) | ||||||
| MOC (Lid) | Made of thick machined Stainless Steel plate | ||||||
| Tubular Stand and Support Ring | Made of mild steel | ||||||
| Power supply | 220/230V AC, 50/60Hz or 430/440 Volts, 3 Phase Supply | ||||||
| Gasket | Made of Jointless Silicon Rubber | ||||||
OPTIONS
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
e) Double Door to cost extra.
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
e) Double Door to cost extra.

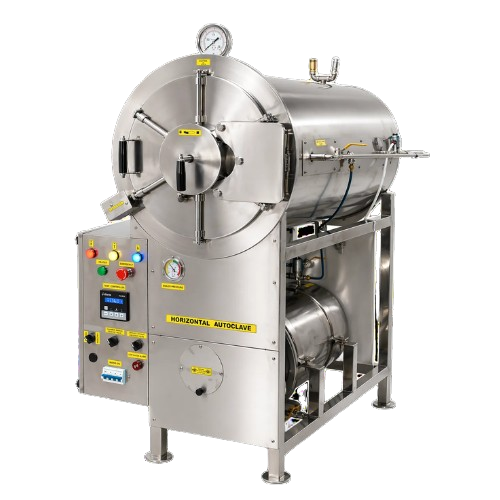

HORIZONTAL CYLINDRICAL AUTOCLAVE (DOUBLE WALLED – FULLY AUTOMATIC DIGITAL) “MAC” MSW-103(FAD)
- “MAC” Horizontal Double Walled Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- An ideal tool for Laboratories, hospitals, nursing homes, R & D labs etc.
- Double walled unit horizontally mounted on a sturdy, heavy M.S. duly painted.
- Both inner chamber and outer wall made of S.S.
- Pressure is adjustable from 10-20 psi.
- Fitted with pressure gauge, safety valve and steam release valve.
- Available with separate boiler.
- For units fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided.
- Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.
- Automatic Low Water Level Cut-Off Device fitted for general safety of the element.
- Lid is made of thick machined stainless steel plate.
- Solenoid Valve for automatic purging and exhaust (user settable).
- Supplied without jacket (Double walled chamber but with separate boiler).
- Industrial grade energy efficient heaters reduce power bills drastically.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
| MODEL | #HCA-88(FAD) | #HCA-100(FAD) | #HCA-135(FAD) | #HCA-165(FAD) | #HCA-200(FAD) | #HCA-250(FAD) | #HCA-300(FAD) |
|---|---|---|---|---|---|---|---|
| Capacity | 88 ltrs | 100 ltrs | 135 ltrs | 165 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Heater Load | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 12.0 KW | 12.0 KW |
| Controller | Microprocessor based Fully Automatic Fuzzy Logic Control system with timer buzzer (AUTO TIME CONTROL). It is fitted with low water cut-off for general safety of heating element. Available with automatic purging facility and exhaust valve. With scaled Digital Pressure Indicator displayed directly on the main control panel | ||||||
| Display | A separate temperature indicator is provided. | ||||||
| Exhaust of Pressure | Automatic through a manual exhaust valve | ||||||
| Sterilizing Pressure | 1.2 kgf /cm² (15 psi) at 121°C | ||||||
| Operating Pressure | From 15 Psi to 20 psi | ||||||
| Pressure Gauge | 0-2.1 kgf /cm² (30 psi) | ||||||
| MOC (Pressure Vessel) | Stainless Steel (SS-304) | ||||||
| MOC (Boiler) | Stainless Steel (SS-304) | ||||||
| MOC (External Wall) | Stainless Steel (SS-304) | ||||||
| MOC (Lid) | Made of thick machined Stainless Steel plate | ||||||
| Tubular Stand and Support Ring | Made of mild steel | ||||||
| Power supply | 220/230V AC, 50/60Hz or 430/440 Volts, 3 Phase Supply | ||||||
| Gasket | Made of Jointless Silicon Rubber | ||||||
OPTIONS
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b)Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
e) Double Door to cost extra.
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b)Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
e) Double Door to cost extra.

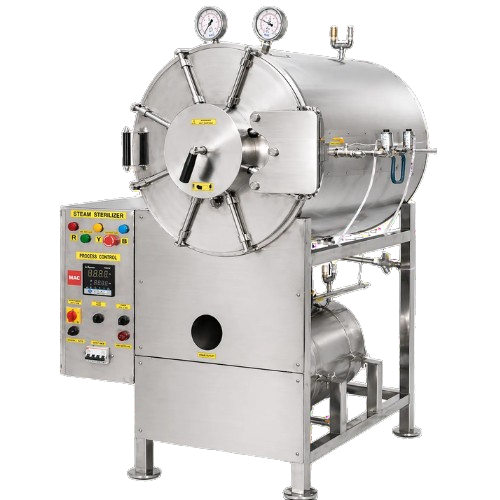

HORIZONTAL CYLINDRICAL H.P. STEAM STERILIZER (SEMI AUTOMATIC WITH LED DISPLAY) "MAC" MSW-104(SAD)
MAC MSW-104(SAD) Horizontal Cylindrical H.P. Steam Sterilizer is a semi-automatic high-pressure steam sterilizer with LED display, specially designed for hospitals, clinics, laboratories, and healthcare centers. It ensures effective sterilization with precise temperature and pressure monitoring, user-friendly operation, durable construction, safety features, and reliable performance for medical instruments and equipment.
CONSTRUCTIONAL FEATURES
| FEATURE | DETAILS |
|---|---|
| MOC (Inner Chamber) | SS-304 |
| MOC (Jacket) | SS-304 |
| MOC (Outer Cover) | SS-304 |
| MOC (Door & Ring) | SS-304 |
| Door Type / Locking | Single Radial Type Locking Door |
| Door Gasket | Silicon |
| MOC (Stand) | Heavy duty all SS Frame – 304 |
| MOC (Control Panel) | Heavy duty SS-304 |
AUTOMATION & CONTROL
| FEATURE | DETAILS |
|---|---|
| Self-Locking Safety Door | Under pressure and heat resistant SILICON door gasket. |
| Water Level Gauge Glass | Show water level with SENSOR |
| Safety Valves | Spring loaded valve in jacket for over pressure protection |
| Pressure Switch | For Pressure cut off & low power consumption |
| Low Water Cut Off | To protect electric heaters (Safety For Heating Element) |
| Earth Safety System | For safety of operator and machine (Safety For Human Life) |
| Steam Deflector | For better vacuum and dryness |
| Air Vent / Steam Trap | Moisture trap |
| Pressure Gauge | To indicate steam pressure of jacket |
| Compound Gauge | To indicate chamber steam pressure and vacuum |
| Alarm System | Process completion buzzer system |
| Display | Steam pressure / temp. |
| Insulation | High heat proof mineral wool |
| Working Cycle |
1 - Standard Speed Working Pressure (121°C) 2 - High Speed Working Pressure (134°C) (1.2 kg to 2.5 kg) |
| Operating System (For Manual) | Multiport Valve (Pre Vacuum, Sterilizer, Fast Exhaust, Vacuum) |
| Additional Accessories | Water Level Gauge Glass |
| Working Temperature | 121°C / 134°C |
| Working Pressure | 25 Lbs To 32 Lbs |
SEMI AUTOMATIC DIGITAL MODEL
| MODEL | #HCSS-88(D) | #HCSS-100(D) | #HCSS-135(D) | #HCSS-165(D) | #HCSS-200(D) | #HCSS-250(D) | #HCSS-300(D) |
|---|---|---|---|---|---|---|---|
| Capacity | 88 ltrs | 100 ltrs | 135 ltrs | 165 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Heater Load | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 12.0 KW | 12.0 KW |
| Controller | Semi Automatic Digital Temperature Indicator-cum-Controller | ||||||
| Display | Digital LED display with set value (SV) and process value (PV) | ||||||
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically. | ||||||
OPTIONS
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
d) Double Door to cost extra.
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED /LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and Saving ON PC. (Dot Matrix Printer to customer scope)
d) Double Door to cost extra.

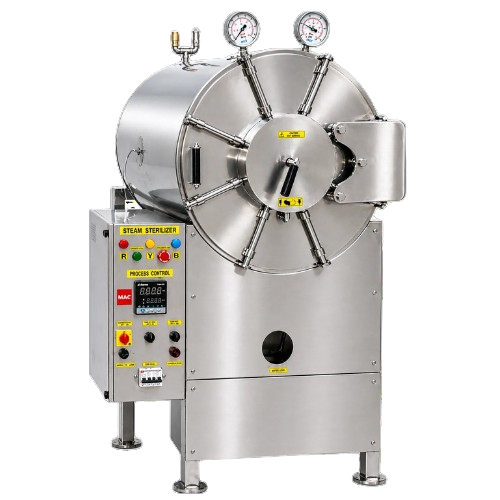

HORIZONTAL CYLINDRICAL H.P. STEAM STERILIZER (FULLY AUTOMATIC WITH LCD DISPLAY) "MAC" MSW-104(FAD)
MAC MSW-104(FAD) Horizontal Cylindrical H.P. Steam Sterilizer is a fully automatic high-pressure steam sterilizer with LCD display, designed for efficient, safe, and reliable sterilization in hospitals, laboratories, and medical facilities with advanced temperature and pressure control systems.
CONSTRUCTIONAL FEATURES
| Feature | Specification |
|---|---|
| MOC (Inner Chamber) | SS-304 |
| MOC (Jacket) | SS-304 |
| MOC (Outer Cover) | SS-304 |
| MOC (Door & Ring) | SS-304 |
| Door Type /Locking | Single Radial Type Locking Door |
| Door Gasket | Silicon |
| MOC (Stand) | Heavy duty all SS Frame – 304 |
| MOC (Control Panel) | Heavy duty SS-304 |
AUTOMATION & CONTROL
| Feature | Specification |
|---|---|
| Self-Locking Safety Door | Under pressure and heat resistant SILICON door gasket. |
| Water Level Gauge Glass | Show water level with SENSOR |
| Safety Valves | Spring loaded valve in jacket for over pressure protection Weight safety valve in jacket for over pressure protection |
| Pressure Switch | For Pressure cut off & low power consumption |
| Low Water Cut Off | To protect electric heaters (Safety For Heating Element) |
| Earth Safety System | For safety of operator and machine (Safety For Human Life) |
| Steam Deflector | For better vacuum and dryness |
| Air Vent / Steam Trap | Moisture trap |
| Pressure Gauge | To indicate steam pressure of jacket |
| Compound Gauge | To indicate chamber steam pressure and vacuum |
| Alarm System | Process completion buzzer system |
| Display | Steam pressure/ temp. |
| Insulation | High heat proof miniral wool |
| Working Cycle |
1 - Standard Speed Working Pressure (121°C) 2 - High Speed Working Pressure (134°C) (1.2 kg ) to (2 .5 kg ) |
| Operating System (For Manual) | Multiport Valve (Pre Vacuum, Sterilizer, Fast Exhaust, Vacuum) |
| Additional Accessories | Water Level Gauge Glass |
| Working Temperature | 121°C / 134°C |
| Working Pressure | 25 Lbs To 32 Lbs |
FULLY AUTOMATIC DIGITAL MODEL
| MODEL | #HCSS-88 (PROFAD) | #HCSS-100 (PROFAD) | #HCSS-135 (PROFAD) | #HCSS-165 (PROFAD) | #HCSS-200 (PROFAD) | #HCSS-250 (PROFAD) | #HCSS-300 (PROFAD) |
|---|---|---|---|---|---|---|---|
| Capacity | 88 ltrs | 100 ltrs | 135 ltrs | 165 ltrs | 200 ltrs | 250 ltrs | 300 ltrs |
| Heater Load | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 12.0 KW | 12.0 KW |
| Controller | Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital Backlit LCD Display with Set Value (SV) and Process Value (PV) | ||||||
| Timer (Auto Time Control) & Buzzer | Fitted with Automatic Digital Minute Timer Which Starts Automatically When Desired Temperature is Achieved. When Time Completes, Heaters Switch Off Automatically with End Cycle Alarm. | ||||||
| Other Features | µProcessor Based Controller with User Programmable Time & Temperature. Class 'A' Platinum (Pt-100) Sensor for Accurate Monitoring. Low Water Level Alarm & Heater Cut Off Protection. Sensor Open Alarm & Display. End Cycle Buzzer with Auto Reset. Solenoid Valve for Automatic Purging & Exhaust (User Settable). | ||||||
OPTIONS
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switches off the water pump and restarts it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED / LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and saving on PC (Dot Matrix Printer to customer scope).
e) Double Door (cost extra).
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switches off the water pump and restarts it at lower level automatically.
b) Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED / LCD Controller.
d) Printer Port (Dot Matrix) with data logger and USB Port for taking data (Paperless Data Recording) and saving on PC (Dot Matrix Printer to customer scope).
e) Double Door (cost extra).
HORIZONTAL RECTANGULAR H.P. STEAM STERILIZER “MAC” MSW-105(LCD)
- “MAC” Horizontal Autoclave High Speed Steam Sterilizer Fully Automatic Rectangular made of SS-304 with electric load 18 KW digital time and temperature controller.
- Fitted with Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital backlit LCD display with Set Value (SV) and Process Value (PV).
- Unit is fitted with water level indicator, safety valve, pressure gauge, water inlet and drain valves.
- Unit is also fitted with low-water level cut-off device and automatic pressure control device.
- All “MAC” rectangular sterilizers are fitted with SELF LOCKING SAFETY DOOR device.
- The door cannot be opened when chamber is under pressure.
- Two separate valves are provided for evacuating steam from inner chamber and jacket, as and when desired.
- Fitted with safety valve as a safety device.
- Drain valve is fitted at the side bottom for easy draining/cleaning.
- Fitted with vacuum breaker to break vacuum in case of formation of vacuum due to steam condensation.
- Triple Walled with Steam Jacket and Separate Boiler. Sterilization cycle is controlled by Multiport Valve. The unit is fitted with all standard accessories.
- PLC feature : Automatic features (steam in, steam out, vacuum & pre vacuum)
- Vacuum Pump : high water ring Kirloskar 3 HP pump for high vacuum.
- Water Fill up pump : for automatic water filling with Crompton 1 HP motor.
- Available in three cycle types.
- Standard speed working pressure (121°C).
- High speed working pressure (134°C) (1.2 kg to 2.5 kg).
- Custom cycles available as per requirement.
- Leak Test Mode.
- Vacuum Leak Test.
- Chemical Indicators.
- Biological Indicators.
- The Bowie-Dick Test.
- All features can also be controlled in manual mode.
SALIENT FEATURES
WORKING CYCLE
TEST MODE
| CONSTRUCTION SPECIFICATIONS | DETAILS |
|---|---|
| Inner Chamber | Built with AISI 304 grade stainless steel |
| Jacket | Built with AISI 304 grade stainless steel |
| Boiler Tank | Built with AISI 304 grade stainless steel |
| Heavy Duty Stand | Built with AISI 304 grade stainless steel |
| All Pipe Line Makes | Built with AISI 304 grade stainless steel |
| Outer Cover | Built with AISI 304 grade stainless steel |
| Main Door | Heavy duty jointless SS-304 grade |
| Back Sheet (Chamber) | Heavy duty jointless SS-304 grade |
| Strong Argon Arc Welded | For greater durability |
| Double Door | Optional |
| SAFETY FEATURES | DETAILS |
|---|---|
| Self-locking Safety Door Gasket | Under pressure and heat resistant SILICON door gasket. |
| Water Level Gauge Glass | Show water level with sensor |
| Spring Safety Valves | In jacket for over pressure protection. |
| Weight Safety Valve | In jacket for over pressure protection. |
| Pressure Switch | For power consumption and pressure cut off. |
| Low Water Protection | To protect electric heaters. |
| Earth Safety System | For safety of operator and machine. |
| Steam Deflector | For better vacuum and dryness. |
| Air Vent / Steam Trap | Moisture trap. |
| Pressure Gauge | For indication of steam pressure jacket. |
| Compound Gauge | To indicate chamber steam pressure and vacuum. |
| Operating System | Controlled by PLC and operated by solenoid valve. |
| Alarm System | Process completion buzzer system. |
| Display | Shows steam pressure / date / time / temperature & vacuum. |
| Insulation | High heat proof glass wool. |
| Printer | Sterilization cycle with date, time, pressure and temperature. |
COMPLIES WITH FOLLOWINGS
- NABH TEST PASS
- THE BOWIE-DICK TEST is a standard operational test by which hospitals and laboratories can demonstrate proper air removal from their pre-vacuum autoclave chamber. It is primarily useful for testing pre-vacuum cycles that are sterilizing wrapped goods or packs.
- BIOLOGICAL INDICATORS (WITHIN A PCD) are often used for routine monitoring, qualification and load monitoring of a steam sterilizer.
- Biological indicators are designed to demonstrate whether the conditions during a steam (autoclave) cycle were adequate to achieve a defined level of microbial inactivation.
- THE VACUUM LEAK TEST is used to determine the air-tight integrity of a pre-vacuum autoclave's chamber and plumbing system. This test exposes the autoclave's plumbing and components to vacuum conditions and measures how much vacuum depth was lost over a given period of time.
- CHEMICAL INDICATORS are used to monitor whether the parameters to achieve sterilization have been met for a specific sterilization process, such as steam or vaporized hydrogen peroxide sterilization.
TECHNICAL SPECIFICATIONS AND ORDERING INFORMATIONS
| MODEL | #HRSS-180(LCD) | #HRSS-240(LCD) | #HRSS-320(LCD) | #HRSS-430(LCD) | #HRSS-810(LCD) | #HRSS-1260(LCD) |
|---|---|---|---|---|---|---|
| INNER DIMENSIONS (W × H × D) IN mm | 450 × 450 × 900 | 450 × 600 × 900 | 600 × 600 × 900 | 600 × 600 × 1200 | 600 × 900 × 1500 | 900 × 900 × 1500 |
| CAPACITY | 180 ltrs | 240 ltrs | 320 ltrs | 430 ltrs | 810 ltrs | 1260 ltrs |
| HEATER LOAD | 6.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 18.0 KW | 24.0 KW |
| OPERATING PARAMETERS | 15 - 20 psi at 121°C OR 30 psi at 134°C | |||||
OPTIONS
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switches off the water pump and restarts it automatically at lower level.
b) Vacuum pulsing through a close-coupled water ring high vacuum pump for creating forced vacuum and ensuring a fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED/LCD Controller.
d) Printer Port available at extra cost.
a) Automatic water feed system can be incorporated in the boiler, so that at higher level it switches off the water pump and restarts it automatically at lower level.
b) Vacuum pulsing through a close-coupled water ring high vacuum pump for creating forced vacuum and ensuring a fast drying process.
c) TFT Touch Screen Display Controller in lieu of LED/LCD Controller.
d) Printer Port available at extra cost.
HORIZONTAL RECTANGULAR H.P. STEAM STERILIZER “MAC” MSW-105(TFT)
- “MAC” Horizontal Autoclave High Speed Steam Sterilizer Fully Automatic Rectangular made of SS-304 with electric load 18KW digital time and temperature controller.
- Fitted with TFT Touch Screen Display Controller.
- Unit is fitted with water level indicator, safety valve, pressure gauge, water inlet and drain valves.
- Unit is also fitted with low-water level cut-off device and automatic pressure control device.
- All “MAC” rectangular sterilizers are fitted with SELF LOCKING SAFETY DOOR device.
- The door cannot be opened when chamber is under pressure.
- Two separate valves are provided for evacuating steam from inner chamber and jacket, as and when desired.
- Fitted with safety valve as a safety device.
- Drain valve is fitted at the side bottom for easy draining/cleaning.
- Fitted with vacuum breaker to break vacuum in case of formation of vacuum due to steam condensation.
- Triple Walled with Steam Jacket and Separate Boiler. Sterilization cycle is controlled by Multiport Valve. The unit is fitted with all standard accessories.
- PLC feature : Automatic features (steam in, steam out, vacuum & pre vacuum)
- Vacuum Pump : High water ring Kirloskar 3 HP pump for high vacuum.
- Water Fill up pump : For automatic water filling with Crompton 1 HP motor.
-
SALIENT FEATURES
WORKING CYCLE
- Available in three cycle types
- Standard speed working pressure (121°C)
- High speed working pressure (134°C) (1.2 kg) to (2.5 kg)
- As per your requirement TEST MODE
- Leak Test Mode
- Vacuum Leak Test
- Chemical Indicators
- Biological Indicators
- The bowie-dick test
- (All feature can be controlled by manual mode also)
| COMPONENT | SPECIFICATION |
|---|---|
| Inner Chamber | Built with AISI 304 grade |
| Jacket | Built with AISI 304 grade |
| Boiler Tank | Built with AISI 304 grade |
| Heavy Duty Stand | Built with AISI 304 grade |
| All pipe line makes | Built with AISI 304 grade |
| Outer Cover | Built with AISI 304 grade 1 |
| Main Door | Heavy duty jointless SS-304 grade |
| Back Sheet (Chamber) | Heavy duty jointless SS-304 grade |
| Strong Argon arc welded | For greater durability |
| Double Door | Optional |
-
SAFETY FEATURES:-
- Self-locking Safety Door Gasket : Under pressure and heat resistant SILICON door gasket.
- Water Level Gauge Glass : Show water level with sensor
- Spring Safety Valves : In jacket for over pressure protection.
- Wight Safety Valve : In jacket for over pressure protection.
- Pressure Switch : For power consumptions. And pressure cut off
- Low Water Protection : To protect electric heaters.
- Earth Safety System : For safety of operator and machine
- Steam Deflector : For better vacuum and dryness
- Air Vent / Steam Trap : Moisture trap
- Pressure Gauge : For show of steam pressure jacket
- Compound Gauge : To show of chamber steam pressure and vacuum
- Operating System : Control by plc and operate by solenoid valve
- Alarm System : After the process complete buzzer system
- Display : Show steam pressure/ date /time /temp. & vacuum
- Insulation : High heat proof glass wool
- Printer : Sterilization cycle with date, time, pressure and temperature
-
COMPLIES WITH FOLLOWINGS
NABH TEST PASS
- THE BOWIE-DICK TEST is a standard operational test by which hospitals and laboratories can demonstrate proper air removal from their pre-vacuum autoclave chamber. It is primarily useful for testing pre-vacuum cycles that are sterilizing wrapped goods or packs.
- BIOLOGICAL INDICATORS (WITHIN A PCD) are often used for routine monitoring, qualification and load monitoring of a steam sterilizer.
- Biological indicators are designed to demonstrate whether the conditions during a steam (autoclave) cycle were adequate to achieve a defined level of microbial inactivation.
- THE VACUUM LEAK TEST is used to determine the air-tight integrity of a pre vacuum autoclave's chamber and plumbing system. This test exposes the autoclave's plumbing and components to vacuum conditions and measures how much vacuum depth was lost over a given period of time.
- CHEMICAL INDICATORS are used to monitor whether the parameters to achieve sterilization have been met for a specific sterilization process, such as steam or vaporized hydrogen peroxide sterilization.
TECHNICAL SPEIFICATIONS AND ORDERING INFORMATIONS
| MODEL | #HRSS-180(TFT) | #HRSS-240(TFT) | #HRSS-320(TFT) | #HRSS-430(TFT) | #HRSS-810(TFT) | #HRSS-1260(TFT) |
|---|---|---|---|---|---|---|
| INNER DIMENSIONS (W X H X D) IN mm | 450x450x900 | 450x600x900 | 600x600x900 | 600x600x1200 | 600x900X1500 | 900x900X1500 |
| CAPACITY | 180 ltrs | 240 ltrs | 320 ltrs | 430 ltrs | 810 ltrs | 1260 ltrs |
| HEATER LOAD | 6.0 KW | 9.0 KW | 9.0 KW | 9.0 KW | 18.0 KW | 24.0 KW |
| OPERATING PARAMETERS | 15 - 20 psi at 121°C OR 30 psi at 134°C | |||||
-
OPTIONS
- Automatic water feed system can be incorporated in the boiler, so that at higher level it switched off the water pump and restart it at lower level automatically.
- Vacuum pulsing through a closed coupled water ring high vacuum pump for creating forced vacuum and fast drying process.
- Printer Port to cost extra.
enquire now
