AUTOPSY TABLE

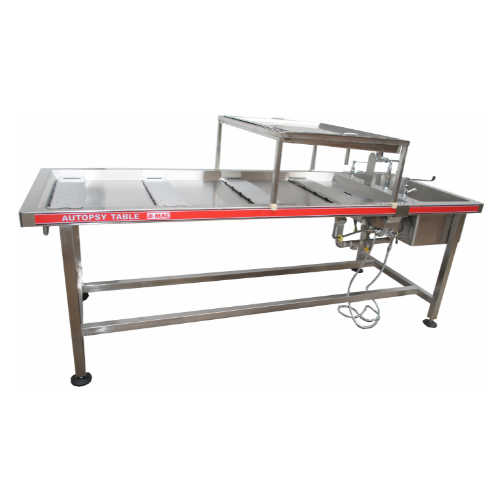

AUTOPSY TABLE “MAC” MSW-541
- “MAC” Autopsy Table are extremely suited for all kind of post-mortem work.
- The total length of the table is 2700mm + 50mm, width 1000mm + 50 mm and height of the table will be 900mm + 50 mm (all inclusive of the table top border).
- Table top border will be 6 cm high from the inner top and 5 cm in width.
- The length of the table, excluding that of the border (i.e. of 2570mm + 50mm) should be divided into:- the inner table top for dissection (1950mm + 50mm), the drainage sink (200mm + 20mm) and the clean water sink (450mm + 20mm).
SPECIFICATIONS
Premium quality SS-304 dissection table designed for anatomy, pathology and laboratory applications with advanced rinsing, drainage and ergonomic operating features.
BUILT QUALITY
- Stainless steel type 304 with satin finish construction.
- Core dished work table top with 1.5mm thickness.
- Rounded borders without sharp corners.
- Mounted on SS pipe frame with load capacity of minimum 250kg.
- Square Pipe 50×50mm (16 gauge).
GRADUATION
- One side of the table border graduated from 0cm to 200cm from head side.
DRAINAGE SINK
- Integrated continuation type drainage sink.
- Depth: 100mm ±10mm and width: 200mm ±10mm.
- Center drainage hole with filter mesh and drain pipe.
- Proper slope provided for smooth drainage.
CLEAN WATER SINK
- Sink integrated within table top border at leg end.
- Approx. size: 870×450×300mm ±25mm.
- Hot & cold wrist/elbow operated taps.
- Rubber drain plug for filling and emptying control.
WATER SUPPLY & CONNECTIONS
- Separate inlets for hot and cold water.
- Hot water connection for sink tap and hand shower.
- Cold water connection for sink tap, hand shower and rinsing tap.
CONTINUOUS RINSING
- Rain shower holes at head end for continuous rinsing.
- Uniform water flow from head end to drainage sink.
- Smooth flow control tap provided at foot end.
TABLE LEGS & SLOPE
- Flat bed leveller screws for height adjustment.
- Height adjustment range up to 100mm.
- Floor fixing foot plates provided.
HAND SHOWER
- Connected at left side leg end water supply.
- Hot & cold water control taps provided.
- Total shower pipe length approx. 3 meters.
- On/Off control on shower handle.
- Head end hanger and center hook support included.
STRIPS
- Four SS-304 strips provided.
- Approx. width of each strip: 150mm.
- Rounded margins for safe handling.
DISSECTION PLATFORM
- SS-304 dissection platform with four legs.
- Table top size: 800×400mm with core dished borders.
- Leg height: 20mm.
- Continuous drain pipe system included.
HEAD REST
- Casted plastic head rest supplied as standard accessory.
OTHER FEATURES
- Heavy duty brass C.P. taps and shower fittings.
- SS-304 drainage sink mesh box included.
- Mesh box prevents clogging from tissue particles.
- Removable sliding design for easy cleaning.
- Angulated perforated surface for faster drainage.
- Strong lifting handle for maintenance convenience.
STATIC
| MODEL | #ATM-220 |
|---|---|
| Table Dimension (LxWxH) mm | 2700+50mm × 1000+50mm × 900mm |
| Drainage Sink | +20mm |
| Clean Water Sink | +20mm |
| Load Carrying Capacity (In Kg) | 250 Kg |
HYDRAULIC LIFT
| MODEL | #ATHL-220 |
|---|---|
| Table Dimension (LxWxH) mm | 2700+50mm × 1000+50mm × 900+50mm |
| Drainage Sink | 200+20mm |
| Clean Water Sink | 450+20mm |
| Load Carrying Capacity (In Kg) | 250 Kg |
